Samsung KM24W/KM24C

This is the Windows version of the Samsung Tizen Device (KM24A)

Opening the unit

• Using your fingers, gently pry the plastic cover off the back of the device. It is secured via plastic tabs so take caution not to bend the plate too far in one direction.
• Once you hear a click, gently run your finger along the bottom edge until the cover can be removed

Accessing the printer and power button

• The built-in scanner may be pressed in using your finger, then the printer tray will release and extend outward.

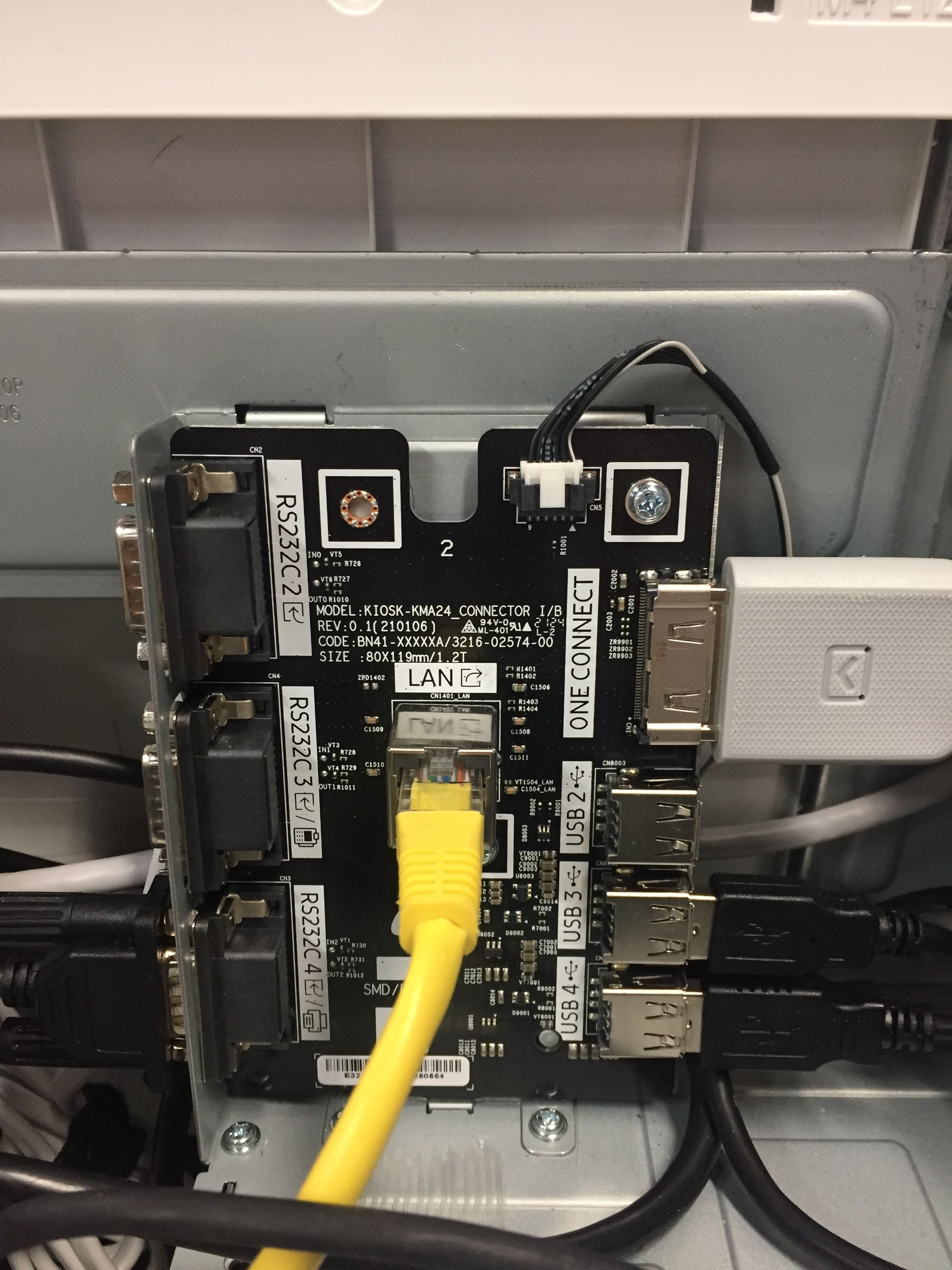

Ports

This is the default configuration of the included motherboard.
